Products
eco-power100TR

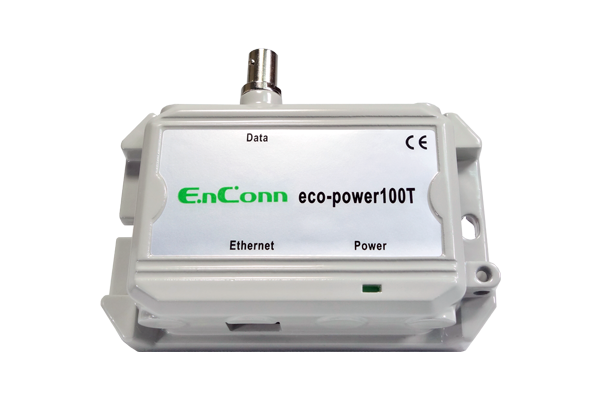

eco-power100T

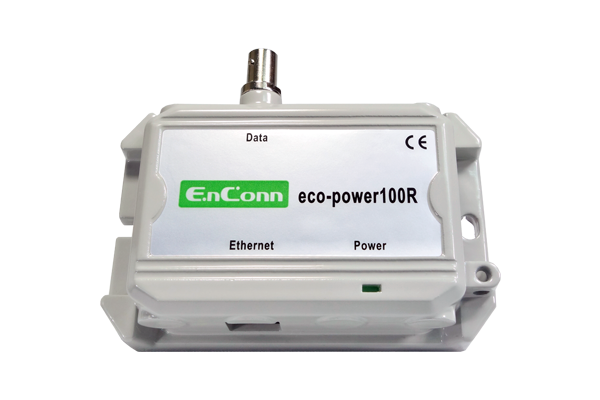

eco-power100R
Description
The eco-power100 enables Ethernet data and PoE power to go over coaxial cables.

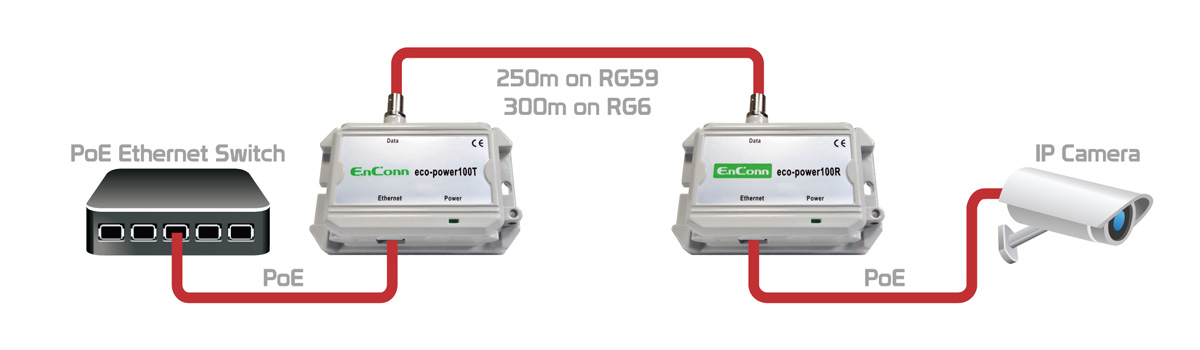

It gets power through a PoE switch. By adopting our technology, the transmission distance of data plus power can reach 200~300m over the coax. The solution provides installers with an easier, faster, and more cost-effective way to replace analogue systems with IP cameras.
Specification
| eco-power100T | Eco-power100R | |
| Electrical | ||
|---|---|---|
| Cable type | 75 ohm RG59 or better | |
| Standard | IEEE 802.3af | |
| Speed | 10/100Mbps for full duplex | |
| Transmission distance | 200m @RG59 coaxial cable | |
| 300m @RG6 coaxial cable | ||
| Power | ||
| Remote powering ability | --- | Max 15.4W |
| Power consumption | 2.5W | 2.5W |
| Physical | ||
| Enclosure material | aluminum alloy | |
| Mounting | wall mountable | |
| Dimension | 112 x 72 x 31.5 mm | 112 x72 x 31.5 mm |
| Operating temperature | -10 ~ 60 degree C | |
