Products

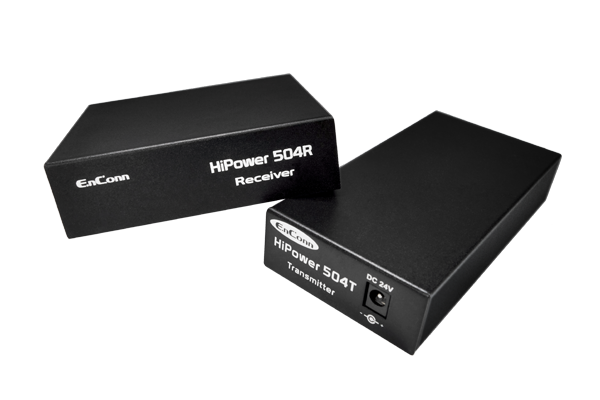

HiPower504

HiPower504

HiPower 504T / HiPower 504R

Description

The HiPower504 enables Ethernet cables to reach 200m. It gets power through a 24V DC adapter, and then forwards PoE to 4 remote IP cameras. The kit combines the features of a PoE injector with a PoE repeater. With the technology, installers can install IP cameras anywhere even when a PoE switch is not available. Meanwhile, the limitation of 100m of network cables can be overcome.

Specification

  HiPower504T PHiPower504R
Electrical
Cable type Cat5e or better
Standard IEEE 802.3af/at or Pre-at
Speed 100Mbps full duplex
Transmission distance 200m
Power
Input power 24V DC ---
Maximum PoE output --- 53W
Power consumption <=2.5 W (stand-alone) <=4.5W
<=8 W (maximal output)
Physical
Enclosure material aluminum alloy
Dimension 133 x 67.5 x 27.5 mm 102.5 x 90.5 x 29.5mm
Operating temperature -10 ~ +60 degree C
Operating humidity 10~ 80%, non-condensing

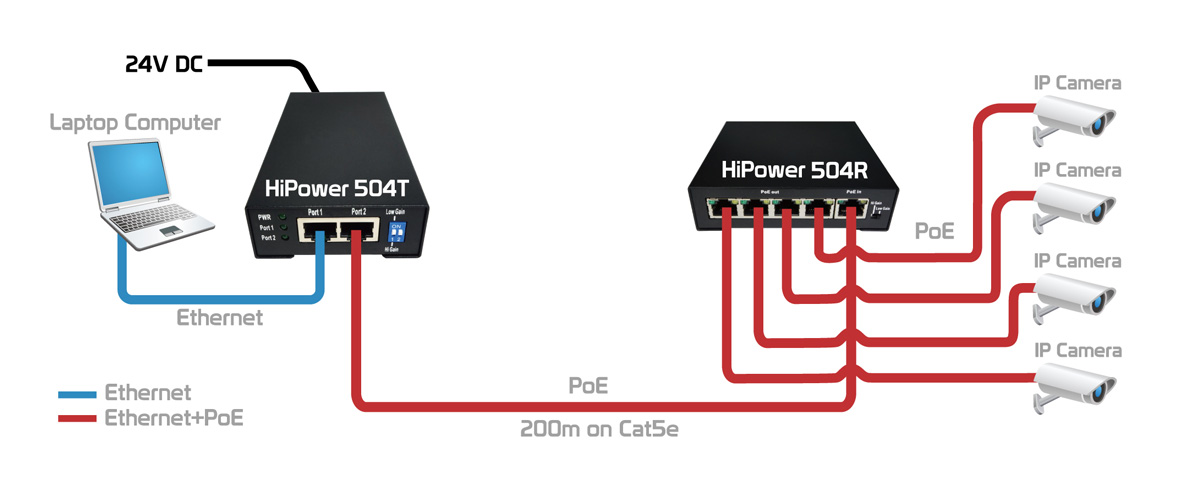

Application
