Description

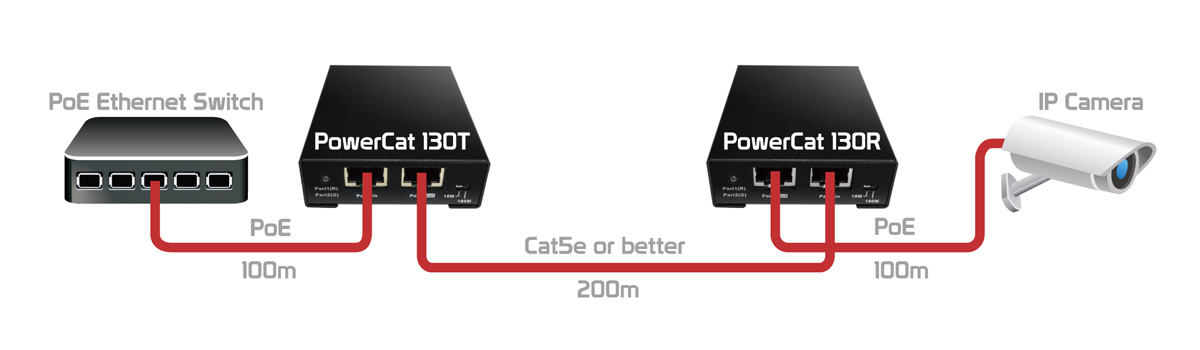

The PowerCat-130 enables Ethernet cables to reach 200m. It gets power through a PoE switch, and then forwards PoE to the IP camera at a far end. Unlike a regular PoE repeater, installers have to put a single unit at every100m interval, which causes inconvenience and in turn would cost more in the total infrastructure costs. With the technology, the PowerCat-130 let the Ethernet cables go straight 200m.
Specification
| PowerCat-130T | PowerCat-130R | |
| Electrical | ||
|---|---|---|
| Cable type | Cat5e or better Note: Cross over cables are not suitable |
|
| Standard | IEEE 802.3af/at or Pre-at | |
| Speed | 100Mbps full duplex | |
| Transmission distance | 200m at 100Mbps | |
| 300m at 10Mbps | ||
| Power | ||
| Operating current | <1A | <1A |
| Power consumption | <=2.5 W | <=2.5 W |
| Power range for PDt | minimal current 55mA | |
| Physical | ||
| Enclosure material | aluminum alloy | |
| Dimension | 84 x 65 x 25 mm | 84 x 65 x 25 mm |
| Operating temperature | -10 ~ 60 degree C | |
