Description

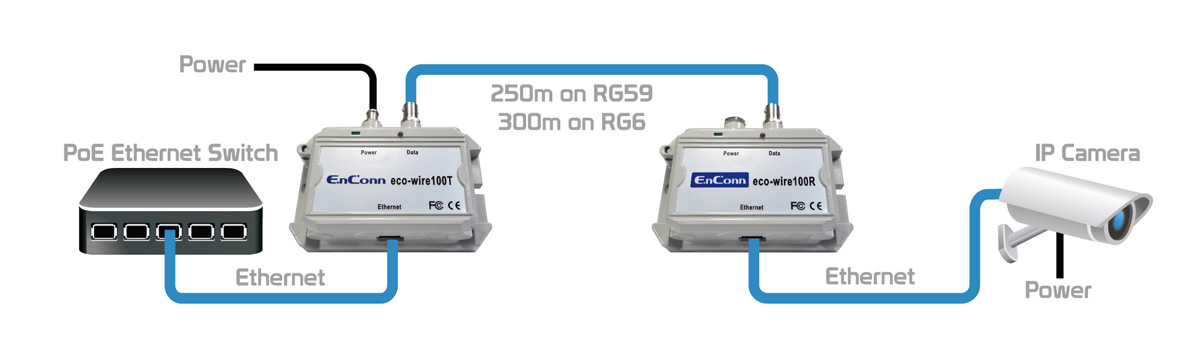

The eco-wire100 enables Ethernet data to go over coaxial cables. It gets power through a 24V DC adapter. By adopting our technology, the transmission distance of data can reach 200~ 300m over the coax. The solution provides installers with an easier, faster, and more cost-effective way to replace analogue systems with IP cameras.
Specification
| eco-wire100T | eco-wire100R | |
| Electrical | ||
|---|---|---|
| Cable type | 75 ohm RG59 or better | |
| Speed | 10/100Mbps for full duplex | |
| Ethernet cable | 1~100m at both ends | |
| Transmission distance | 200m @RG59 coaxial cable | |
| 300m @RG6 coaxial cable | ||
| Power | ||
| Power consumption | 2.4W | 2.4W |
| Physical | ||
| Enclosure material | Aluminum Alloy | |
| Mounting | Wall Mountable | |
| Dimension | 112 x 72 x 31.5 mm | 112 x72 x 31.5 mm |
| Operating temperature | -10 ~ 60 degree C | |
